Q7 Commercial Foam Fractionator

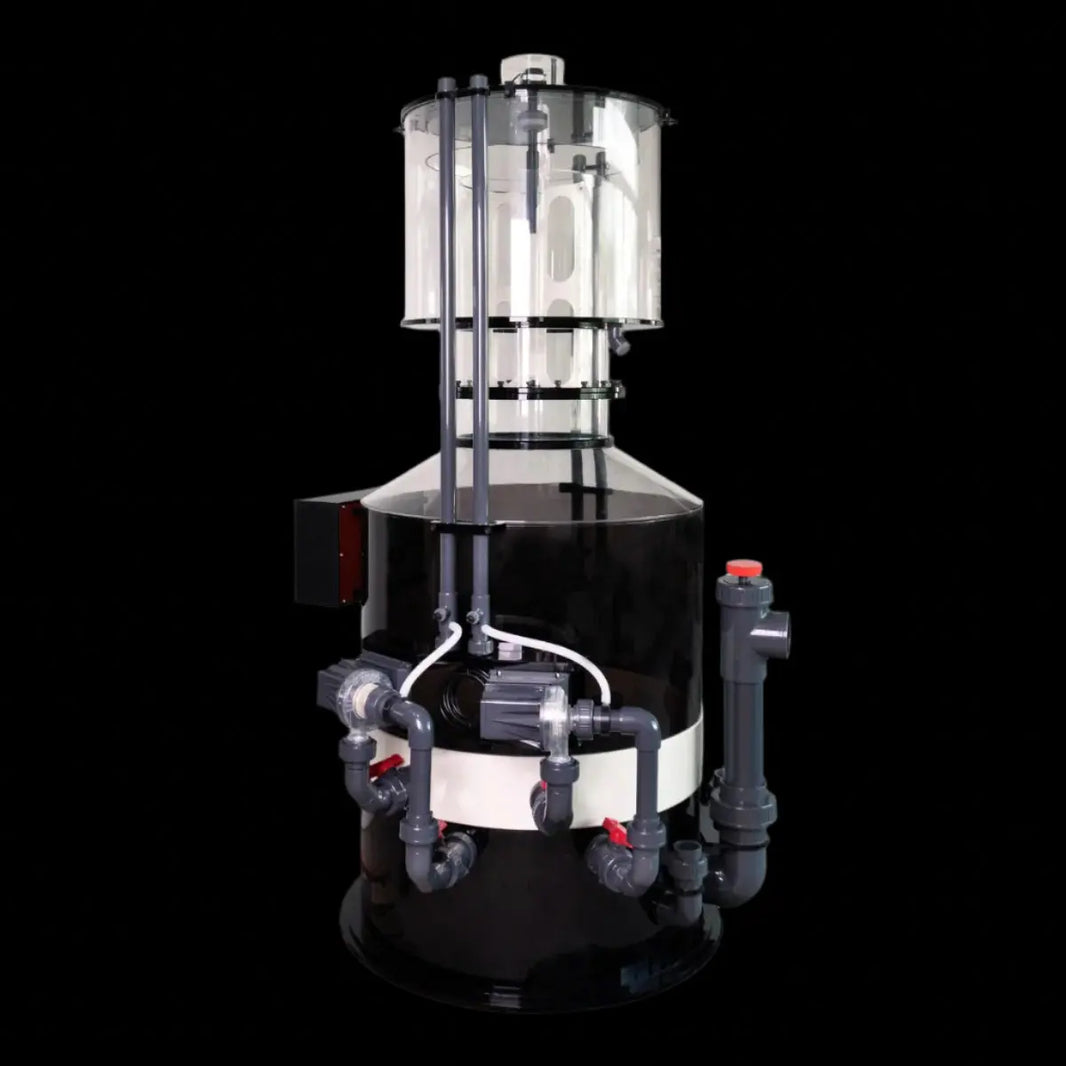

Q7 Commercial Protein Skimmer Great for commercial systems: 12,500-18,000 gallons The Q7 is a commercial-size foam fractionators that is extremely efficient at removing dissolved organics and pollutants from sea water. Utilizing a group of 4 Bubble Blaster 10000 pinwheel pumps that efficiently chops and injects a mass amount of microbubbles into its 31.5in diameter body where it mixes in with approximately 130 gallons of water. The dissolved organics and pollutants are attracted to the microbubbles and rise into a waste collection cup. These foam fractionators are compatible with ozone with direct venturi ports installed for added safety. Foam collection cups remove easy for maintenance. Applications include aquaculture recirculating systems, commercial displays, large aquaculture facilities, aquarium/ zoological exhibits, mammal exhibits, seafood-holding systems, ornamental ponds and shrimp systems. The Power The quiet yet powerful Reef Octopus Bubble Blaster HY-10000 is a super efficient pinwheel skimmer pump that comes backed by a 2 year warranty. Our Bubble Blaster skimmer pumps are a true innovation to the aquarium hobby. Equipped with a calcium inhibiting silicone nitride shaft and bearings our Bubble Blaster skimmer pumps increasing life of the pump and decreasing maintenance. While all other skimmer pumps on the market are modified water pumps from a water pump manufacturer the Bubble Blaster pumps were designed and built to be a skimmer pump! Enhanced with a digital control circuit board that controls the pumps directional start-up and RPM speeds. This smart circuit board will shut the pump off if it detects a problem. Another unique feature is the clear volute housing which allows you to see inside the pump without having to take it apart allowing you to see if something is stuck inside the volute housing or pinwheel. The key feature of the Bubble Blaster pumps is the enormous amount of air they pull per watt. Air and water volume is the key to aggressive protein skimming and there is no other pump on the market that compares. The Skimmer Hybrid body skimmers have been a huge hit amongst budget wise professionals and hobbyists due to the ideal conical transition from the body to the neck. This reduces turbulence, directs the flow gently up to the neck and reduces head pressure off of the re-circulation pump providing enhanced performance. Terms of purchase This skimmer requires 8-10 week lead time and a 50% deposit up front to begin the building of the skimmer. Skimmers can only ship by freightand are required to cover the cost of shipping. We can ship directly to the job site if desired. Technical Specs Body Size: 31.5in Footprint: 53.2in x 41.5inTotal Height:75in Collection Cup Diameter:23.6in Collection Cup Volume:14.5galNeck Size: 14in Main Chamber Volume: 130gal Output Size: 90mm \ 3in PVCOutput Height: 12.24inFeed Inlet Size: (x2) 1.5in (x1) 2inRetention Time: 1.5min Note: Suggested Feed Rate of 5280-8000GPHRecommended feed pump:x2-Reef Octopus Water Blaster 10,000 Pump Information X4 - Reef Octopus Bubble Blaster HY-10000sPinwheel PumpVoltage: 120v/60HzTotal Wattage: 500wTotal Air draw: 18170 L/H (635 SCFH)Total GPH: 3480 - Efficiency: 95%*Air and water results will vary depending on aquarium setup Neck Cleaner Power: 15wattType: Twin Blade Warranty 2 Year on Pump Body2 Year Pump Rotor1 Year on Skimmer BodyReef Octopus can not be responsible for consequential damages arising from the installation or use of this product. Reef Octopus warrants the pump to be free from defects in material and workmanship under normal use and conditions for the warranty period from the date of purchase. CoralVue liability under this warranty shall be limited to repairing or replacing at CoralVue’s discretion, without charge. CoralVue will not be liable for any cost of removal, installation, transportation, or any other charges which may arise in a warranty claim. *Reef Octopus reserves the right to change/modify this product without notice.
